What Is the Difference Between Permeable Paving and Permeable Resin Coatings?

Thinking about updating the driveway or footpaths around your home but don’t know what type of surface you want? Don’t worry, we’ve got you covered. Before anything, there are two important considerations to make when designing outdoor surfaces: drainage and durability.

The two most common solutions are permeable paving and permeable resin coatings, such as resin-bound or resin-washed stone systems. While they may look similar, they work in different ways and are suited to different applications.

This blog looks at the key differences between the two, including how they work, where they are best used, and how they compare in durability, maintenance, and overall aesthetics.

What Is Permeable Paving?

The term paving covers a broad category of surfacing systems that have been designed to allow water to drain through the surface into the ground below. Unlike standard materials that allow water to pool or flow into drainage systems, permeable paving contains open joints or porous materials that allow rainwater to infiltrate the base layers and soil beneath.

These systems typically consist of several layers including:

1. A permeable surface layer such as porous blocks or gravel.
2. A sub-base of crushed stone that stores water temporarily.
3. Natural soil below that absorbs the water.

This layered structure mimics the way natural soil absorbs rainfall, by soaking up runoff and improving drainage.

Common Types of Permeable Surfaces

Permeable surface is not one single material, rather, it includes several systems or layers, such as:

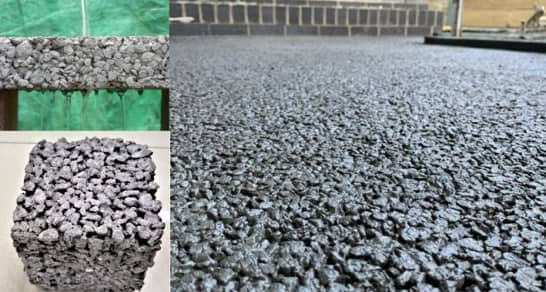

Permeable Concrete (porous concrete)

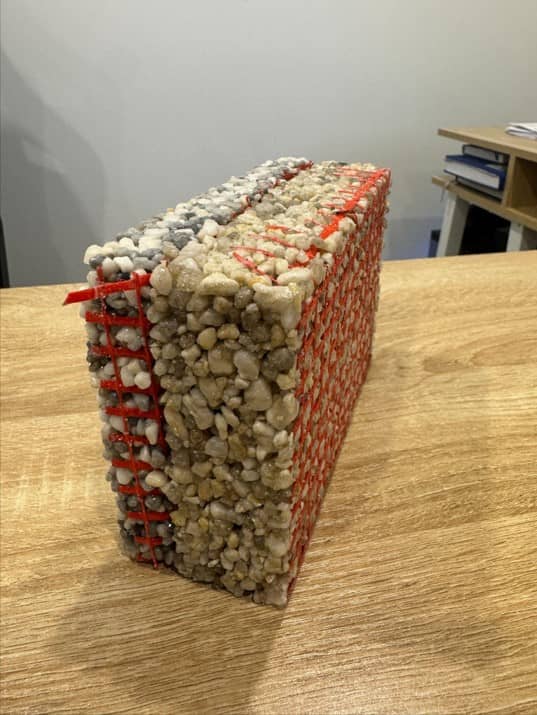

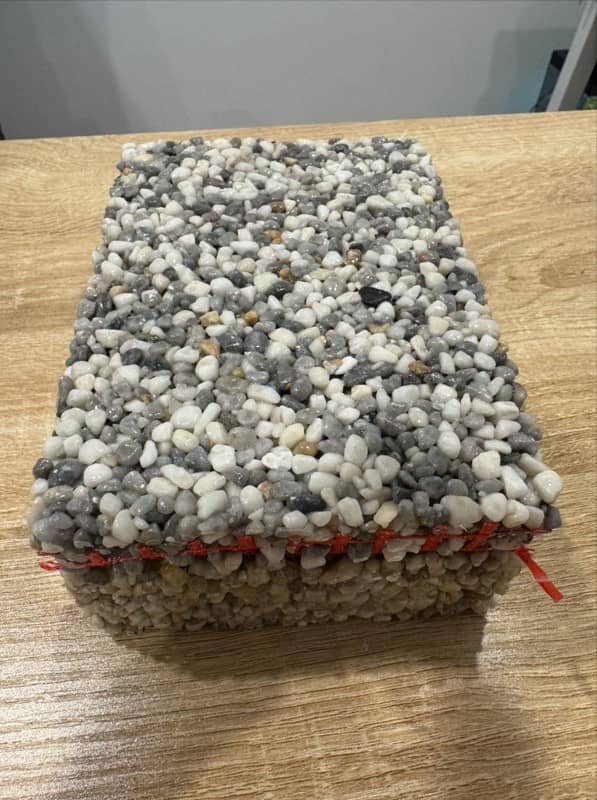

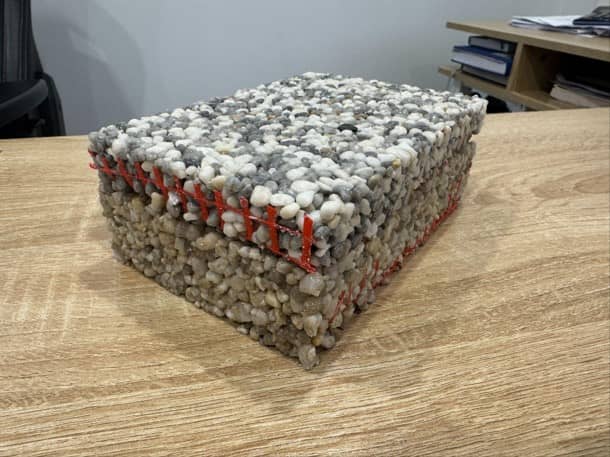

Resin bound PERMAC System

These systems are widely used in both residential and public open space environments as no pavers and concrete is being used and are entirely environmentally friendly and fully permeable because they help manage stormwater. Our permeable resin bound solutions can significantly reduce runoff and help filter rainwater before it reaches underground water reserves.

The Permmac system consists of 3 stages. The first is to remove the loose ground of the area of where it is being laid as it is important to lay on top of solid ground then placing a minimum of 50mm of free dust crushed rock. The second stage is to lay the first coat of resin bound base as in the pictures above with minimum 40mm of thickness on top of the crush rock. The final stage is to lay your choice of colour mix on top of the resin bound base with 12mm of thickness. Between each stage a mesh is placed on top to secure and strengthen the pebbles together to ensure a life long of comfort.

The Structural System

How it works

The pavers are designed with “nibs” on the side that automatically create gaps in the surface. When laid, these spacers create 2mm to 5mm gaps between the stones allowing the surface to breathe.

The Infill

These gaps are filled with a specific, washed 2-5mm aggregate such as blue metal or granite stone. Using stone ensures water disappears the moment it hits the ground, unlike sand, which clogs the system.

The Reservoir

When rain hits the surface, water doesn’t soak directly through the brick itself, but rather it drops through the gaps into a deep, open-graded gravel sub-base that acts as a temporary storage tank or sponge before the water naturally soaks into the clay or soil below.

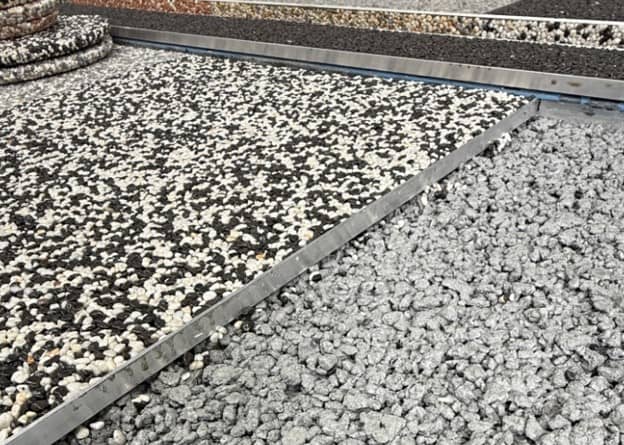

What Are Permeable Resin Coatings?

Permeable resin coatings are a specific type of surfacing system that uses natural aggregates as washed- clean-dried Pebble that is mixed with a clear resin binder. The mixture is applied to a prepared base to create a smooth, decorative surface. The two most common resin-based finishes are:

Resin-Bound Stone

With resin-bound stone, the aggregate and resin are mixed together before being laid. Each stone is fully coated in resin, and the mixture is trowelled onto the surface to create a smooth layer with small gaps between the stones. These tiny spaces allow water to pass through the surface.

With this technique, resin-bound surfaces are often fully permeable when installed over a porous base, making them compliant with sustainable drainage systems (SuDS).

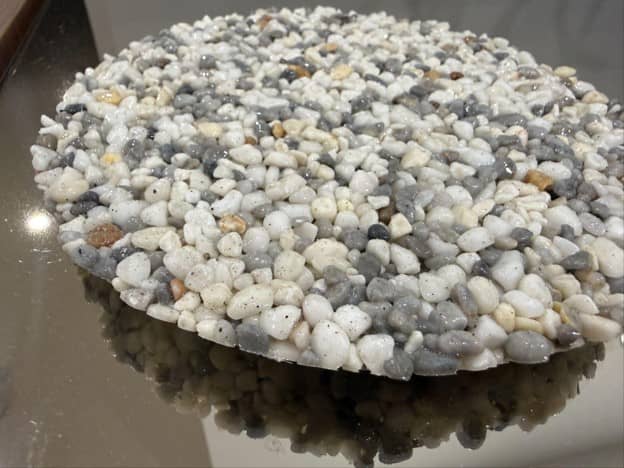

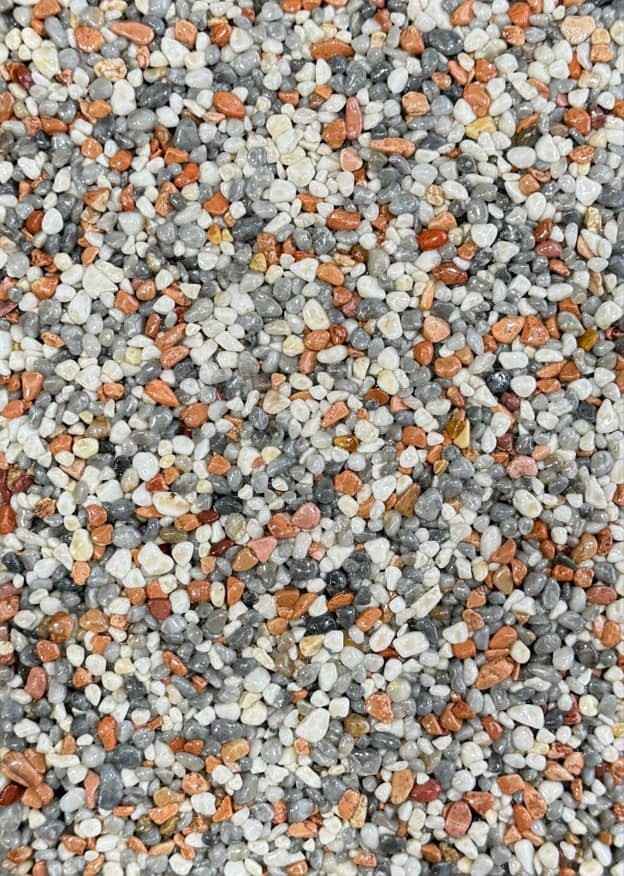

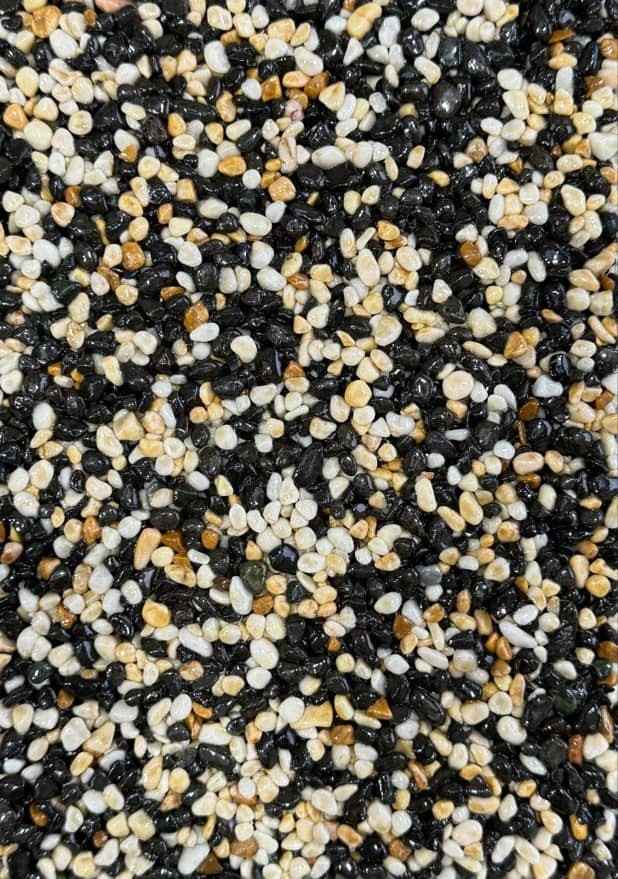

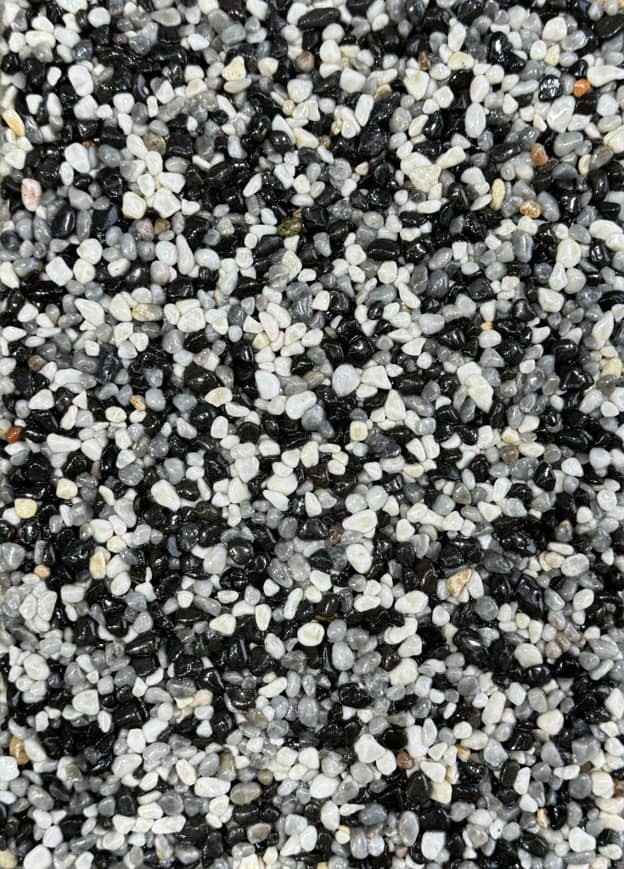

Resin-Bonded (_ Resurface) Surfaces

Not to confuse resin-bonded surfacing with resin-bound, in a bonded system, the resin is applied over a solid base like existing concrete and the aggregate is scattered over the top.

This creates a textured finish but does not allow water to pass through, meaning it is generally non-permeable.

Meaning, when people refer to permeable resin coatings, they are usually referring specifically to resin-bound systems rather than resin-bonded ones.

Key Differences Between Permeable Paving and Resin Coatings

Although both options can provide permeable surfaces, they differ significantly in structure, appearance, and use.

Structural Design

Permeable paving is typically a modular or layered system where individual pavers, blocks, or grids sit on a permeable sub-base that stores and drains water.

Resin coatings, on the other hand, are continuous surfaces created by applying a resin-aggregate mixture over a base layer. Or put simply:

• Permeable paving: water drains through joints or porous materials between units.
• Resin-bound coatings: water drains through small voids between resin-coated stones.

Both systems can provide efficient drainage, but the resin bound system is more effective than the permeable paving system; their installation and structure are very different.

Installation Method

The installation of permeable paving involves several stages. First, the area is excavated to the required depth before a deep aggregate sub-base is installed to support drainage and structural stability.

Blocks or pavers are then laid across the prepared surface, and the joints between them are filled with permeable materials that allow water to pass through. Although this process can be labour-intensive, it creates a highly durable surface capable of handling significant loads.

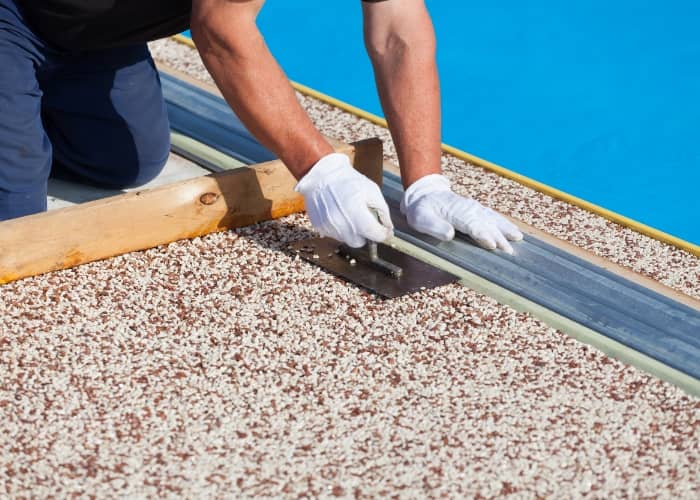

Resin-bond coatings on the other hand are installed using a different method. The process begins by preparing a stable base, which is often concrete or crushed rock. Aggregate is then mixed thoroughly with resin to coat the stones evenly. This mixture is then spread across the surface and carefully trowelled into place, forming a smooth and continuous layer.

The finished surface is relatively thin but provides a seamless appearance while still allowing water to drain through small gaps between the stones and is more than capable of enduring heavy loads than pavers

Best Uses for Each System

Both permeable paving and resin coatings are versatile, but they tend to be preferred in different situations, including:

Driveways

Permeable paving was popular on driveways and was often used on driveways that support heavy loads for 10 years . Interlocking concrete pavers are designed to withstand regular traffic loads.

Resin-bonded surfaces are very popular for driveways due to their smooth appearance and permeability. A well-installed resin-bonded driveway can last around 10-15 years with minimal maintenance.

The right choice for your driveway will depend on factors such as load requirements, budget and the overall look of your home.

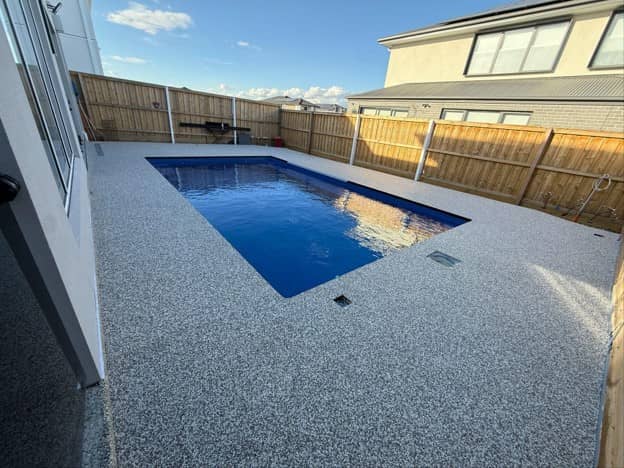

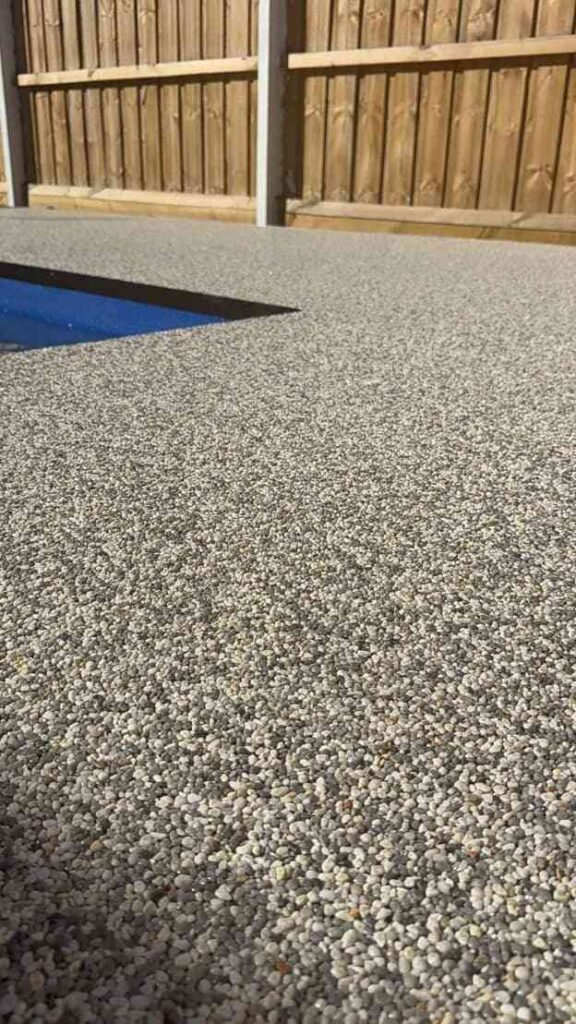

Pool Areas

Pool areas need surfaces that are slip-resistant, drain well, and look good. Resin-bound coatings are usually the go-to choice for these areas as they give a smooth, seamless finish, drain water effectively, and have natural anti-slip features.

These surfaces are usually installed at about 12 mm thick, making them perfect for terraces and around pools. Permeable paving can also work in pool areas but the gaps between the pavers might feel uneven, which isn’t the best for bare feet.

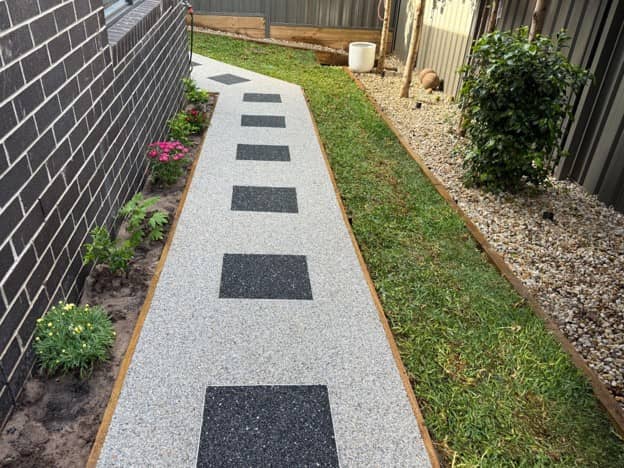

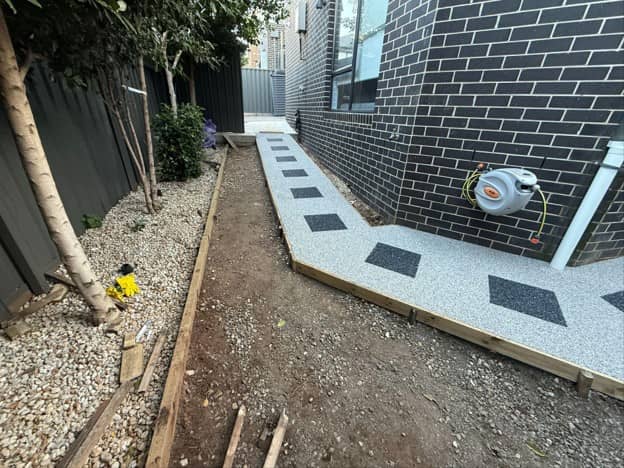

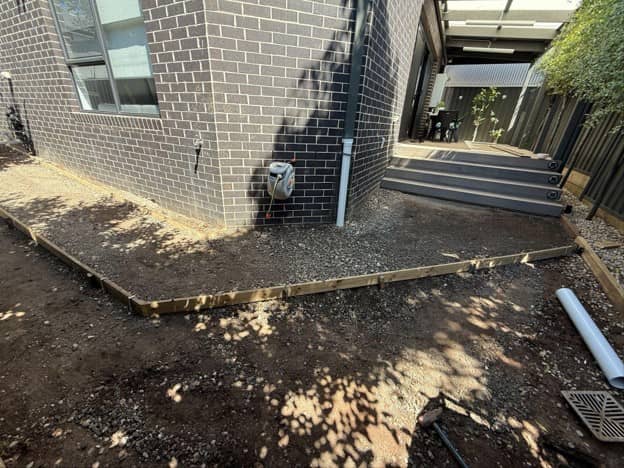

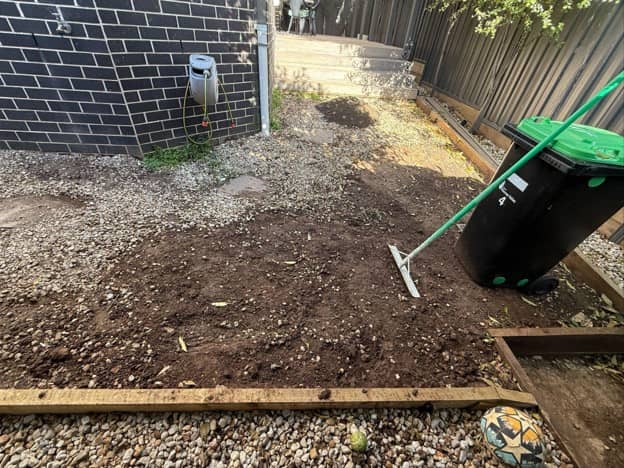

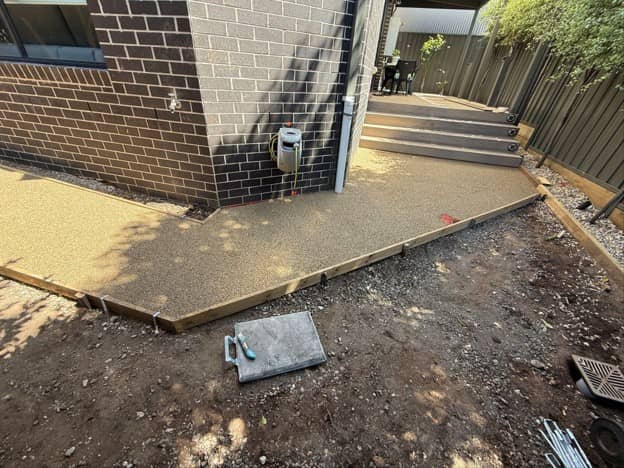

Garden Paths and Walkways

For garden paths, aesthetics often matter more than heavy load capacity. Resin-bound systems are popular around these areas because they create seamless curves, allow decorative colour blends and prevent loose gravel migration. Permeable gravel or block paving is another option, especially for traditional landscapes.

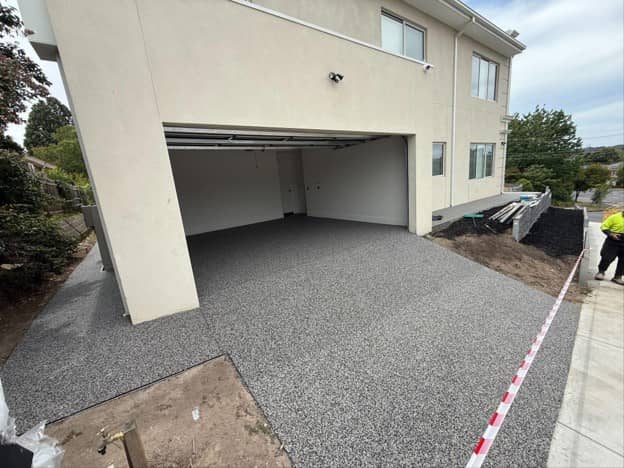

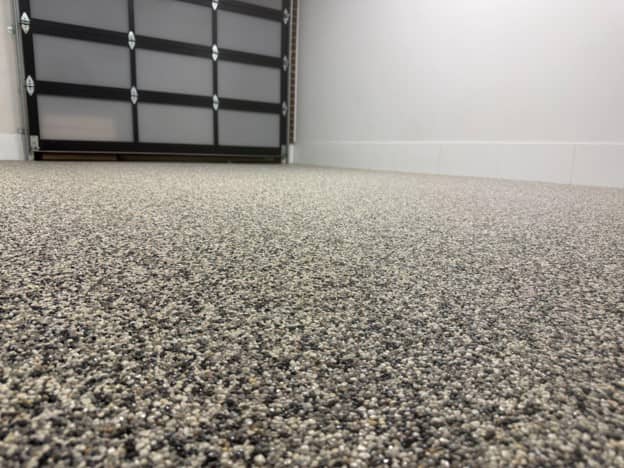

Garage Floors

Garage floors are commonly Re- surfaced with permeable coating with a thickness of 12mm.and, is applied for decorative or protective purposes. Epoxy floors can be used however will not last for long periods of time and will eventually peel off and will need consistent maintenance.

Durability and Lifespan

Durability depends heavily on installation quality, base preparation, and expected traffic loads.

Permeable Paving

Advantages:

• Durable
• Individual blocks can be replaced if damaged
• Suitable for heavy traffic

With proper care and regular maintenance, these systems can last anywhere between 10-15 years.

Resin-Bound Coatings

Resin-bound surfaces are durable but slightly thinner. A high-quality installation lasts 15–20 years.

Advantages

• Extremely Durable
• The damaged surface can be replaced
• Proper for heavy load and traffic
• Seamless finish
• Colours can be altered to your liking
• No Mold will appear on permeable coating

Maintenance Requirements

Both systems are considered relatively low maintenance compared with traditional surfaces. Maintenance for permeable paving includes occasional sweeping, removing debris from joints and pressure washing if needed. This helps maintain drainage and prevent clogging. However with Permeable Coating sweeping or blowing off leave and high pressure is all you need to clean the pebbles.

Aesthetic Differences

One of the biggest differences between permeable paving and resin coatings is the visual finish. These styles are commonly used in traditional driveways, pathways, and public spaces because they create a classic, ordered look.

Permeable paving typically creates a structured, geometric appearance, with common styles such as:

• Brick-style paving patterns
• Grid systems filled with gravel or grass
• Concrete block designs

Resin-bound coatings, by contrast, produce a smooth exposed-aggregate surface. They are widely chosen for modern landscaping projects because they:

• Use natural stone aggregates
• Offer a wide range of colour options
• Create seamless surfaces without visible joints

One of the main advantages of resin-bound systems is its design flexibility. Aggregates can be blended together to produce custom colour combinations, allowing surfaces to be tailored to suit a wide variety of architectural and landscape styles.

Environmental Benefits

Both permeable paving and resin-bound systems support sustainable drainage systems (SuDS). These systems help reduce surface water runoff, filter out pollutants and help
replenish groundwater.

Studies show permeable surfaces can remove 60–95% of suspended solids and up to 90% of hydrocarbons from stormwater runoff. This makes them increasingly popular in urban planning and environmentally sensitive developments.

Choosing the Right Surface

When deciding between permeable paving and permeable resin-bound coatings, it’s important to consider the specific requirements of your project.

Choose permeable paving if you need:

• Maximum structural strength
• Modular repair options, allowing individual sections to be replaced
• Traditional paving aesthetics
• A durable solution for large commercial or high-traffic installations

Choose resin-bound coatings if you want:

• A smooth, decorative finish
• Seamless surfaces without visible joints
• Custom colour options using blended natural aggregates
• Faster installation over an existing suitable base
• Extreme Structural Strength
• Easy to Repair with the correct process

If installed correctly, both systems provide great permeability and manage surface water effectively.

Talk to the Experts

At the end of the day it comes down to suitability to the specific needs of the project. If you’re after durability under heavy loads, permeable paving delivers a robust, interlocking system built for vehicles and frequent use.

For projects where visual appeal is a must, resin-bound stone provides a sleek, hand-trowelled surface. It’s the premier decorative solution for contemporary paths and poolside areas, blending high-end style with 100% permeability

Whether it’s permeable paving in Kew, permeable resin coating in Bentleigh or permeable driveways in Mornington, our team services are all around metropolitan Melbourne. For a free consultation, get in touch with the team at Permeable Coatings today!
